WALL

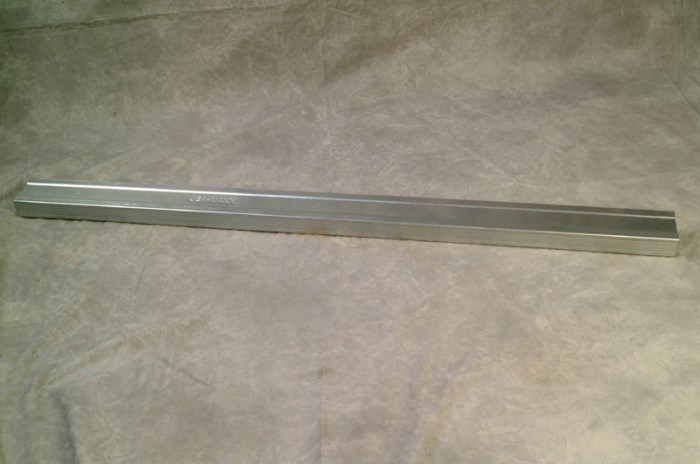

studs

Studs

Installed vertically inside the tracks by studs screw or blind rivets with maximum spacing of 610mm (24″). It also holds the boards.

Size varies from 51mm (2″), 64mm (2 1/2″), 76mm (3″), 92mm (3 1/2″), 102mm (4″) with lenght of 24mm (8 ft)

with:

  • 50mm x 75mm
  • 50mm x 100mm
  • 50mm x 150mm
  • GA 25/0.50mm
  • GA 24/0.60mm
  • GA 22/0.80mm
  • GA 20/1.00mm

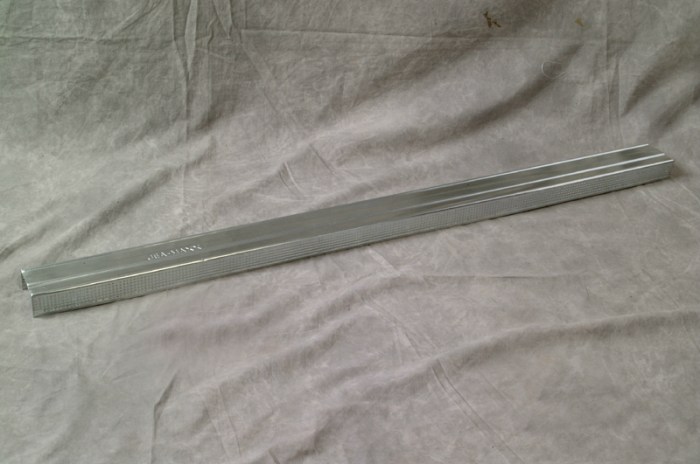

TRACKS

Tracks

Placed on the floor by a concrete nail, tox or any fastening material with size of 35mm (1 3/8) x 76mm (3″) and standard length of 2.44m (8ft) to 3.0m (10ft)

  • 35mm x 51mm, 64mm, 92mm, 102mm
  • 50mm x 75mm, 100mm, 150mm
  • GA 25/0.50mm
  • GA 24/0.60mm
  • GA 22/0.80mm
  • GA 20/1.00mm
